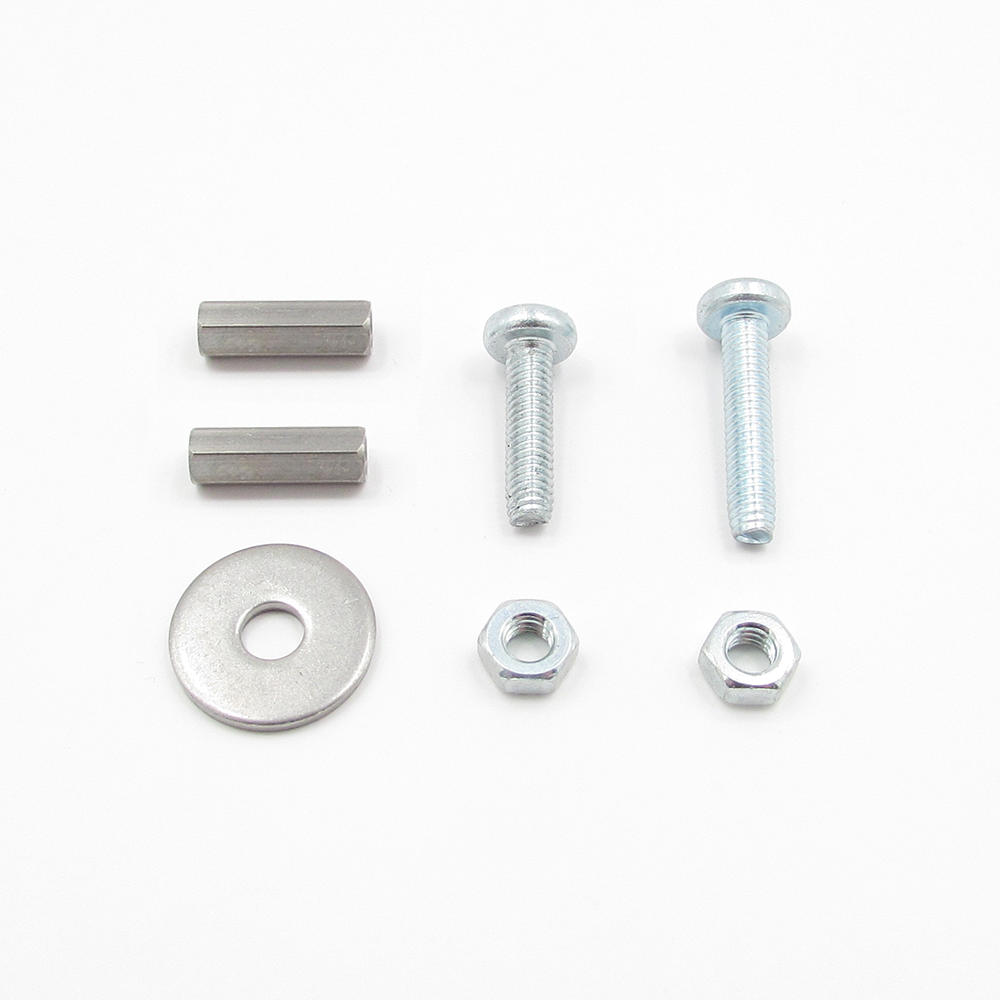

Extraction tool for the Mercedes hydraulic line port seals
| Quantity | Unit price |
|---|---|
| From 1 |
$12.99*
|
| From 2 |
$12.49*
|
| From 5 |
$11.99*
|
| From 10 |
$11.49*
|
Sold out
Brass ring removal instructions (Mercedes SL R129):
- The front distributor 1298000022 / all hydraulic cylinders except 1298001772 / 1298001872 / 1248000272 (bow extension cylinders): Remove the tension clips that hold the hydraulic lines in place and pull the hydraulic lines carefully out of the distributor/cylinder. Put the distributor/hydraulic cylinder in a vice with the hydraulic line port openings facing upwards. Now thread one of the nuts onto the short screw until it touches the screw head (some force may be needed at the beginning due to the unique shape of the threads). Place the washer on top of the hydraulic line port whose seal you would like to remove. Insert the screw through the washer into the brass ring using a Torx T20 screw driver. Proceed to turn the screw driver until the screw is fully seated inside the brass ring (the screw is fully seated either when the nut touches the washer or when the brass ring starts rotating). Now use one hand to hold the screw driver (and the screw) in place while turning the nut clockwise with a 7mm wrench. This will lift the brass ring slowly until it can be fully removed. After that, you can remove the brass ring from the screw by using a pair of pliers and holding onto the outside of the brass ring while unscrewing the screw.
- Hydraulic cylinders 1298001772 / 1298001872 / 1248000272 (bow extension cylinders): Remove the tension clips that hold the hydraulic lines in place and pull the hydraulic lines carefully out of the cylinder. Put the hydraulic cylinder in a vice with the hydraulic line port openings facing upwards. Now thread one of the nuts onto the long screw until it touches the screw head (some force may be needed at the beginning due to the unique shape of the threads). Place the washer on top of the hydraulic line port whose seal you would like to remove (the lower hydraulic line port opening of the bow extension cylinders requires placing the included spacer on the lower shoulder to level the washer due to the two port openings being too close to each other). Insert the screw through the washer into the brass ring using a Torx T20 screw driver. Proceed to turn the screw driver until the screw is fully seated inside the brass ring (the screw is fully seated either when the nut touches the washer or when the brass ring starts rotating). Now use one hand to hold the screw driver (and the screw) in place while turning the nut clockwise with a 7mm wrench. This will lift the brass ring slowly until it can be fully removed. After that, you can remove the brass ring from the screw by using a pair of pliers and holding onto the outside of the brass ring while unscrewing the screw.
- The rear distributor, the valve block on the left side (1298000178 / 1298000278 / 1298000778 / 1298000878 / 1298000978 / 1298001578 / 1298001678 / 1298001778 / 1298001878 / 1298001978 / 1298002078 / 1298002378 / 1298002578), the valve block on the right side (1298001178 / 1298002478 / 1298002678) and the roll bar valve block (1298000378 / 1298001078 / 1298002178 / 1298002278): Unscrew the brackets that hold the hydraulic lines in place and pull the hydraulic lines carefully out of the distributor / the valve block. Put the distributor / the valve block in a vice with the hydraulic line port openings facing upwards. Now thread one of the nuts onto the short screw until it touches the screw head (some force may be needed at the beginning due to the unique shape of the threads). Place the two spacers on opposite sides of the hydraulic line port whose seal you would like to remove and place the washer on top. Insert the screw through the washer into the brass ring using a Torx T20 screw driver. Proceed to turn the screw driver until the screw is fully seated inside the brass ring (the screw is fully seated either when the nut touches the washer or when the brass ring starts rotating). Now use one hand to hold the screw driver (and the screw) in place while turning the nut clockwise with a 7mm wrench. This will lift the brass ring slowly until it can be fully removed. After that, you can remove the brass ring from the screw by using a pair of pliers and holding onto the outside of the brass ring while unscrewing the screw.
Brass ring removal instructions (Mercedes E-Class W124):
- All hydraulic cylinders except 1248000272 / 1248000772 (bow extension cylinders): Remove the tension clips that hold the hydraulic lines in place and pull the hydraulic lines carefully out of the distributor/cylinder. Put the distributor/hydraulic cylinder in a vice with the hydraulic line port openings facing upwards. Now thread one of the nuts onto the short screw until it touches the screw head (some force may be needed at the beginning due to the unique shape of the threads). Place the washer on top of the hydraulic line port whose seal you would like to remove. Insert the screw through the washer into the brass ring using a Torx T20 screw driver. Proceed to turn the screw driver until the screw is fully seated inside the brass ring (the screw is fully seated either when the nut touches the washer or when the brass ring starts rotating). Now use one hand to hold the screw driver (and the screw) in place while turning the nut clockwise with a 7mm wrench. This will lift the brass ring slowly until it can be fully removed. After that, you can remove the brass ring from the screw by using a pair of pliers and holding onto the outside of the brass ring while unscrewing the screw.
- Hydraulic cylinders 1248000272 / 1248000772 (bow extension cylinders): Remove the tension clips that hold the hydraulic lines in place and pull the hydraulic lines carefully out of the cylinder. Put the hydraulic cylinder in a vice with the hydraulic line port openings facing upwards. Now thread one of the nuts onto the long screw until it touches the screw head (some force may be needed at the beginning due to the unique shape of the threads). Place the washer on top of the hydraulic line port whose seal you would like to remove (the lower hydraulic line port opening of the bow extension cylinders requires placing the included spacer on the lower shoulder to level the washer due to the two port openings being too close to each other). Insert the screw through the washer into the brass ring using a Torx T20 screw driver. Proceed to turn the screw driver until the screw is fully seated inside the brass ring (the screw is fully seated either when the nut touches the washer or when the brass ring starts rotating). Now use one hand to hold the screw driver (and the screw) in place while turning the nut clockwise with a 7mm wrench. This will lift the brass ring slowly until it can be fully removed. After that, you can remove the brass ring from the screw by using a pair of pliers and holding onto the outside of the brass ring while unscrewing the screw.
- The valve block on the left side (1248001178), the valve block on the right side (1248001278) and the roll bar valve block (1248001678): Unscrew the brackets that hold the hydraulic lines in place and pull the hydraulic lines carefully out of the valve block. Put the valve block in a vice with the hydraulic line port openings facing upwards. Now thread one of the nuts onto the short screw until it touches the screw head (some force may be needed at the beginning due to the unique shape of the threads). Place the two spacers on opposite sides of the hydraulic line port whose seal you would like to remove and place the washer on top. Insert the screw through the washer into the brass ring using a Torx T20 screw driver. Proceed to turn the screw driver until the screw is fully seated inside the brass ring (the screw is fully seated either when the nut touches the washer or when the brass ring starts rotating). Now use one hand to hold the screw driver (and the screw) in place while turning the nut clockwise with a 7mm wrench. This will lift the brass ring slowly until it can be fully removed. After that, you can remove the brass ring from the screw by using a pair of pliers and holding onto the outside of the brass ring while unscrewing the screw.
