Mercedes 2308000030 SL R230 top hydraulic line port seal kit - hydraulic pump
| Quantity | Unit price |
|---|---|
| From 1 |
$53.99*
|
| From 2 |
$50.99*
|
| From 5 |
$47.99*
|
| From 10 |
$44.99*
|
Available, delivery time: 2-7 days
Product number:
MJ10540
Brand:
MJ Produkte®
We offer a complete hydraulic line port seal kit / repair kit for the hydraulic pump (Mercedes part numbers A2308000030 / 2308000030, A2308000088 / 2308000088, A2308000330 / 2308000330, A2308000348 / 2308000348) used in Mercedes SL R230 models.

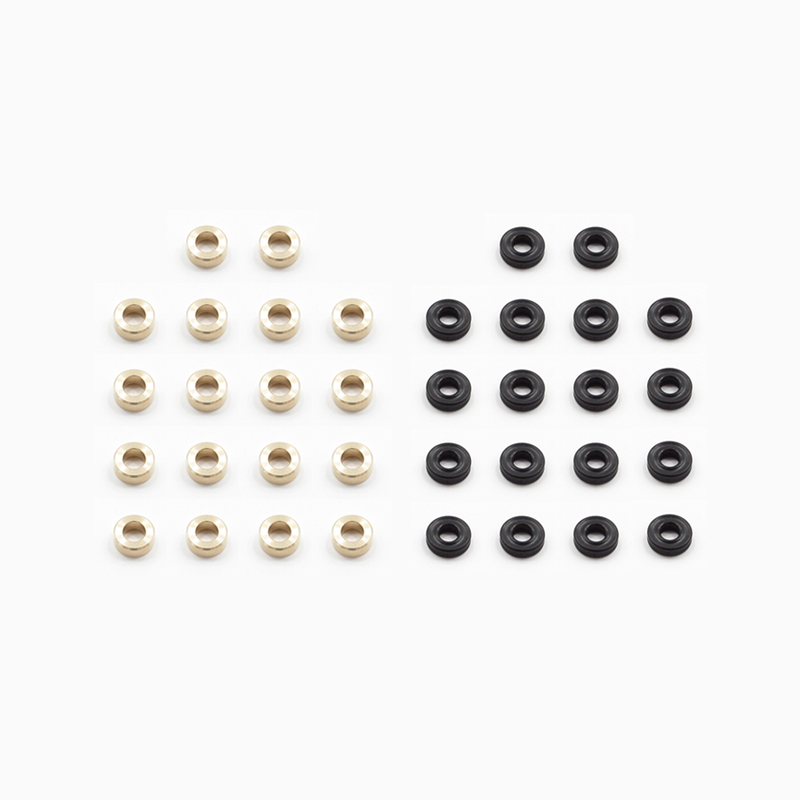

These seals are located within the hydraulic ports of the hydraulic pump and consist of a uniquely shaped quad seal and a CNC machined brass support ring to keep the seal in place. The support rings are CNC-milled to our specification in Germany within tolerance class DIN ISO 2768-1-f (fine) and then precision ground to ensure a high level of accuracy.
Attention: Special tools are needed for the removal of the old and insertion of the new brass support rings.
Attention: Although the seals we offer have a high temperature range, they may only be used with the following types of hydraulic fluid to ensure smooth operation and a long service life:
- Genuine Mercedes Benz hydraulic fluid MB 343.0, hydraulic fluids in accordance with standard DIN 51 524, HLP 32 or standard ISO 11158, HM 32
